The Future of Water Testing
The innovative WaterLink® Spin Touch® photometer does all your pool and spa water testing for you.
Each sealed SpinDisk® reagent cartridge contains the precise amount of reagent needed to run a complete series of tests. Just fill one unique SpinDisk® reagent cartridge with less than 3 mL of water and all your vital tests are done automatically—in just 60 seconds!
It’s the most advanced system for precise use of wet chemistry methods ever produced. Now analysts can achieve precision without time consuming test and clean-up procedures. This ground-breaking analysis system is so simple anyone can use it! No vials to fill, no prep time, no guessing!
See other WaterLink® Spin Touch® models at: www.waterlinkspintouch.com
FEATURES
The WaterLink® Spin Touch® Includes: Photometer, Instruction Manual, Quick-Start Instructions, 3 Syringes, Calibration Check Disk, USB Cord with USB Wall Adapter, and the In-Store Kit (organizational countertop mat; 36 x 24 inch wall-poster; store-window decal) — SpinDisk® reagent cartridges sold separately.
Available Test Factors
- Free Chlorine (DPD)
- Total Chlorine (DPD)
- Bromine (DPD)
- pH
- Calcium Hardness
- Total Alkalinity
- Cyanuric Acid
- Copper
- Iron
- Salt
- Phosphate
- Borate
- Biguanide
- Biguanide Shock
Reliable Results
- Virtually Eliminates User-Error
- Pre-Measured Reagents
- Exact Reaction Times and Auto-Blanking
- Meter Calibration Check System
- New 6-Wavelength Photometer
Data Logging
- Stores Test Dates, Times, Results, Location
Stand-Alone
- No Computer, Smartphone, or Tablet Needed
- Touchscreen Operation
- Communicate through Bluetooth® or USB
SPECIFICATIONS

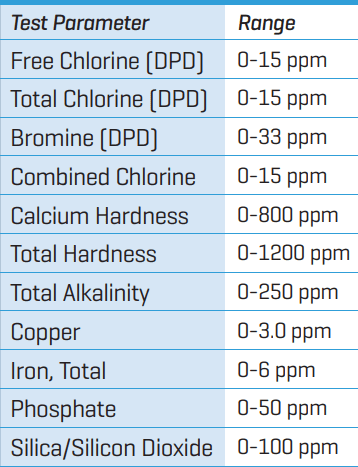

WaterLink® Spin Touch® Meter Specifications
NSF Certification
The NSF/ANSI/CAN 50 certification mark on a water quality testing device (WQTD) used in recreational waters, such as pools and spas, means that the product was reviewed and certified by NSF International to meet applicable American National Standards for product design and performance. NSF tests and re-tests products to confirm that they comply with all requirements of certification for performance, accuracy and operating range. Certification levels of L1, L2, and L3 are possible with L1 being the highest rating. Go to www.nsf.org for more information.
For the most recent WaterLink Connect 2 update and the most recent Spin Touch firmware update, customers who intend to use a WaterLink Spin Touch Meter for NSF certification compliance purposes should:
1. Visit https://softwarecenter.lamotte.com/ and download the WaterLink Connect 2 application for Windows.
2. Plug the Spin Touch into the computer using the included USB cable.
3. Open the WaterLink Connect 2 desktop application and wait for the update to complete.
Effective June 2023. Based on a 12 month shelf life. Other test factors not evaluated by NSF.
Go to www.nsf.org to review the latest levels, ranges, shelf life, firmware versions supported, and a current listing of LaMotte NSF 50 certified products.
VIDEOS
ACCESSORIES
Mobile WaterLink® Spin Touch® SpinDisk® Reagent Cartridge Series
SpinDisk® Patent No. 8,734,734; FCl Patent No. 8,987,000; TCl Patent No. 8,993,337; FCl EU Patent No. EP2784503 A1
DOWNLOADS
3580-MN Spin Touch Instructions Manual (English, French, Spanish, and Portuguese) (12.27 MB)
3580-QG Quick Start Guide (English) (0.96 MB)
3580-MN-EU Spin Touch Instructions Manual (Italian, German, Dutch, Swedish, and Turkish) (14.98 MB)
1705 Check Disk Instruction (English, French, Portuguese, and Spanish) (442.66 kB)
